JGS Precision Turbo ARP KA24(D)E

Main and head stud installation instructions

Main Studs Head Studs
Head Studs-

With stock style composite head gasket

#1- Make sure all block threads are clean, its a good idea to chase the block threaded holes with a tap to insure thread quality.

#2- Install studs in block hand tight with moly lube on both ends of the stud.

#3- Then install head with head gasket (be sure to use a little RTV on the front cover area).

#4- Next install washers and nuts with moly lube on both sides of each washer.

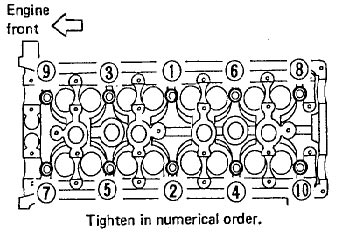

#5- After that torque studs to 25ft/lbs (in order shown below), then repeat to 45ft/lbs, then repeat to 55ft/lbs, and loosen all studs.

#6- Finally torque studs to 25ft/lbs (in order shown below), then repeat to 45ft/lbs, then finally repeat order tightening to 60ft/lbs.

NOTE- If using an MLS head gasket such as the Cometic gaskets, set #5 can be omitted.

Main Studs-

#1- Make sure all block threads are clean, its a good idea to chase the block threaded holes with a tap to insure thread quality.

#2- Install studs in block hand tight with moly lube on both ends of the stud.

#3- Then install mains with bearings.

#4- Next install washers and nuts with moly lube on both sides of each washer.

#5- Finally torque studs to 25ft/lbs (in order shown below), then repeat order to 45ft/lbs, then finally repeat order tightening to 60ft/lbs.
